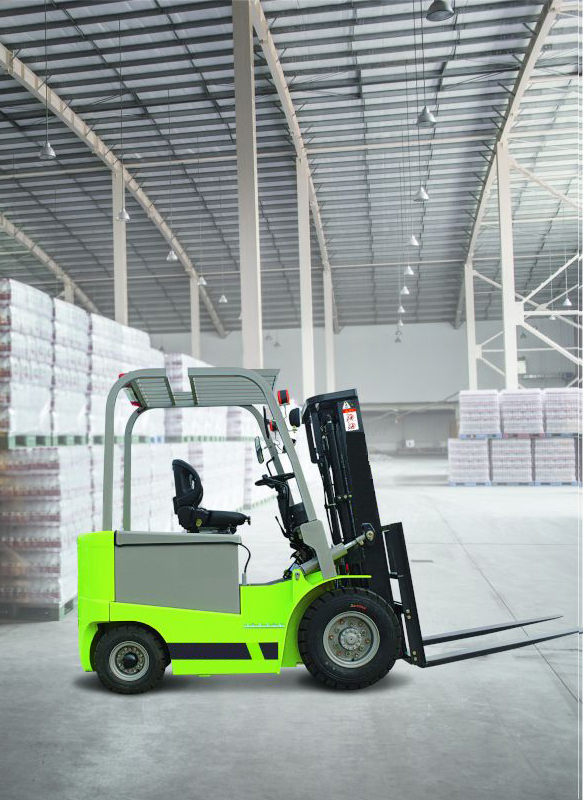

GTFB15-Z Electric Forklift
Electric Forklift
GTFB15-Z Electric Forklift
| Specifications | Unit | FB15 | |||
| Characteristics | Power | battery | |||
| Capacity | kg | 1500 | |||
| Center of load | mm | 500 | |||
| Lifting height | mm | 3000 | |||
| Free lifting height | mm | 135 | |||
| Forks L×W×H | mm | 920×100×35 | |||
| Mast tilt angle Forward/Backward | 。 | 6月12日 | |||
| Min.turning radius | mm | 1850 | |||
| Min. right angle stacking width | mm | 3460 | |||
| Min. right angle Aisle width | mm | 1840 | |||
| Min.ground clearance | mm | 100 | |||
| Overhead guard height | mm | 2100 | |||
| Height from seat to overhead guard | mm | 1005 | |||
| Front overhang | mm | 405 | |||
| Perf | Max.traveling speed(loaded) | km/h | 12 | ||
| Max.lifting speed（loaded） | mm/s | 270 | 300 | ||
| Gradeability | % | 15 | |||
| Dimensions | Overall length （without fork） | mm | 1990 | ||
| Overall width | mm | 1070 | |||
| Mast extended height(with bracket) | mm | 3860 | |||
| Mast lowered height | mm | 1955 | |||
| Chassis | Tire | Front | 6.50-10-10PR | ||
| Front | 6.50-10-10PR | ||||
| Rear | 5.00-8-10PR | ||||
| Wheelbase | mm | 1250 | |||
| Tread width | Front/Rear | mm | 890/920 | ||
| Curb weight | None-load | kg | 2990 | ||
| Powertrain | Battery | Voltage/Capacity | V/Ah | 48/450 | |
| Motor | Traveling | KW | 8 | ||
| Lifting | KW | 7.5 | 10 | ||
| Controller | CURTIS | ||||
| Control type | 50%AC | 100%AC | |||
| Working pressure | Mpa | 14.5 | |||
Safe & Durable
• Electronic AC traction motor and pump control with self-protection features that do not require any maintenance.
• Motors are equipped with temperature and speed sensors to prevent accidental damage.
• Closed-loop speed control with standard power selection switch (crawl) that ensures safety and power saving.
• Automatic ramp parking with empty or full load.
Energy & Efficient
• Interactive CURTIS LCD meter that can customize driving and lifting performance, and monitor the operating conditionsof the motors to provide work time and fault code.
• Closed-loop lifting speed control that ensures accurate and comfortable lifting control.
• CAN electrical bus control offers fast and accurate signal transmission.
• Sufficient climbing power that can increase overall speed by 20%.
Smooth & Quiet
• Excellent handling performance that ensures stable and fast acceleration during operation.
• Load sensing and single pump bypass technologies that reduce steering noise significantly.
• Low-noise toothed pump that reduces operating noise significantly.
• 30% energy recovery while braking to provide more power for the battery.
• Electronic AC traction motor and pump control with self-protection features that do not require any maintenance.
• Motors are equipped with temperature and speed sensors to prevent accidental damage.
• Closed-loop speed control with standard power selection switch (crawl) that ensures safety and power saving.
• Automatic ramp parking with empty or full load.
Energy & Efficient
• Interactive CURTIS LCD meter that can customize driving and lifting performance, and monitor the operating conditionsof the motors to provide work time and fault code.
• Closed-loop lifting speed control that ensures accurate and comfortable lifting control.
• CAN electrical bus control offers fast and accurate signal transmission.
• Sufficient climbing power that can increase overall speed by 20%.
Smooth & Quiet
• Excellent handling performance that ensures stable and fast acceleration during operation.
• Load sensing and single pump bypass technologies that reduce steering noise significantly.
• Low-noise toothed pump that reduces operating noise significantly.
• 30% energy recovery while braking to provide more power for the battery.
